SKU: N/A Category: Tags: ,
Total Number of Ports:

6

Dimensions:

23.3" (592mm) H x 23.3" (592mm) W x 6.0" (152mm) D

More Information

GP2406-06670

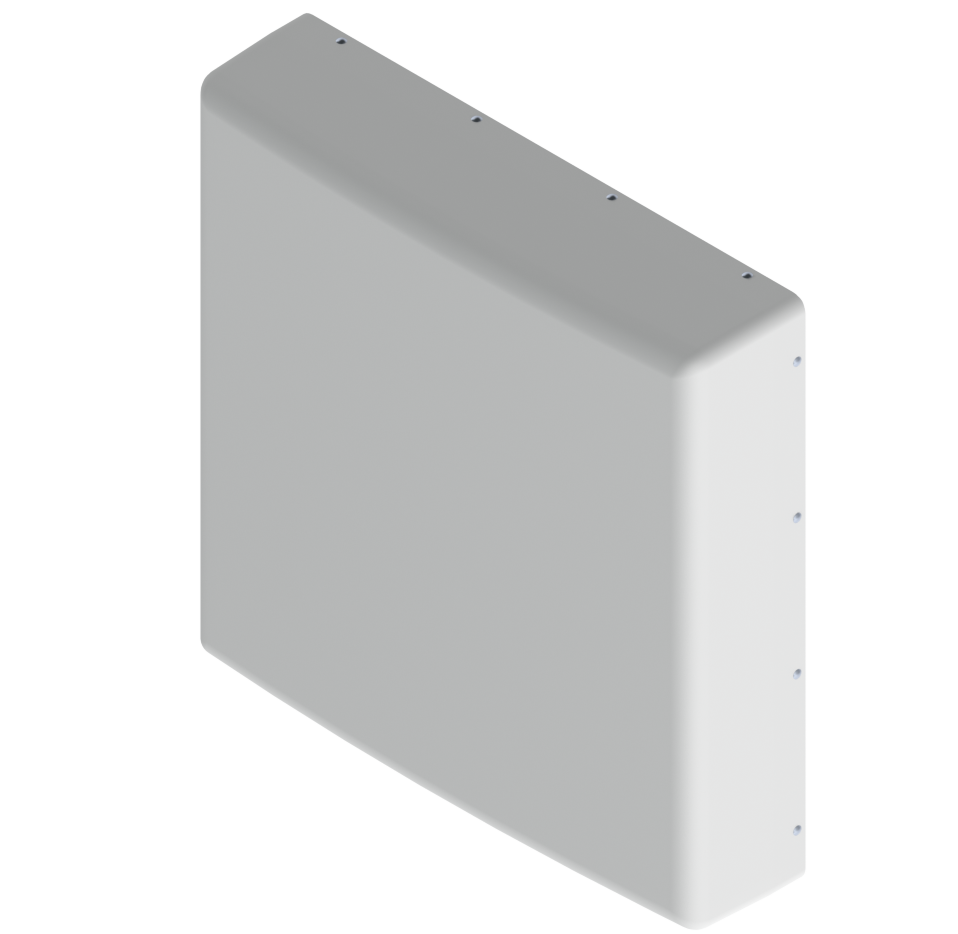

30°/30° 6-Port Directional Panel Antenna [698-896, 1695-2690 and 5150-5925 MHz]

  •  Single-sector Hex-port MIMO antenna for high capacity and stadium venues.
  • 30° /30°  beam width dual-polarized covering LTE/CELL, AWS/PCS/WCS and LAA-UNII Bands.
  • 2x ports for 698-896 MHz and 1695-2690 MHz
  • 2x ports for 1695-2690 MHz
  • 2x ports for 5150-5925 MHz*

*Compliant to 789033 D02 General UNII Test Procedures New Rules v01r04: Guidelines for Compliance Testing of Unlicensed National Information



Weight N/A
Dimensions N/A
Total Number of Ports

6

Height

24"

Connector Option 1

4.3/10-F

Low Band Frequency Range

698-896MHz

Mid Band 1 Frequency Range

1695-2690MHz

Mid Band 1 Number of Ports

4

High Band 2 Frequency Range

5150-5925MHz

High Band 2 Number of Ports

2

Diversity

2×2, 4×4

Color

Gray
