GP7640-08324
Category: Tags: ,
Total Number of Ports:

24

Dimensions:

75.6” (1920 mm) H x 33.0” (838.2 mm) W x 13.0” (330 mm) D

Download Datasheet

More Information

Contact customer support.

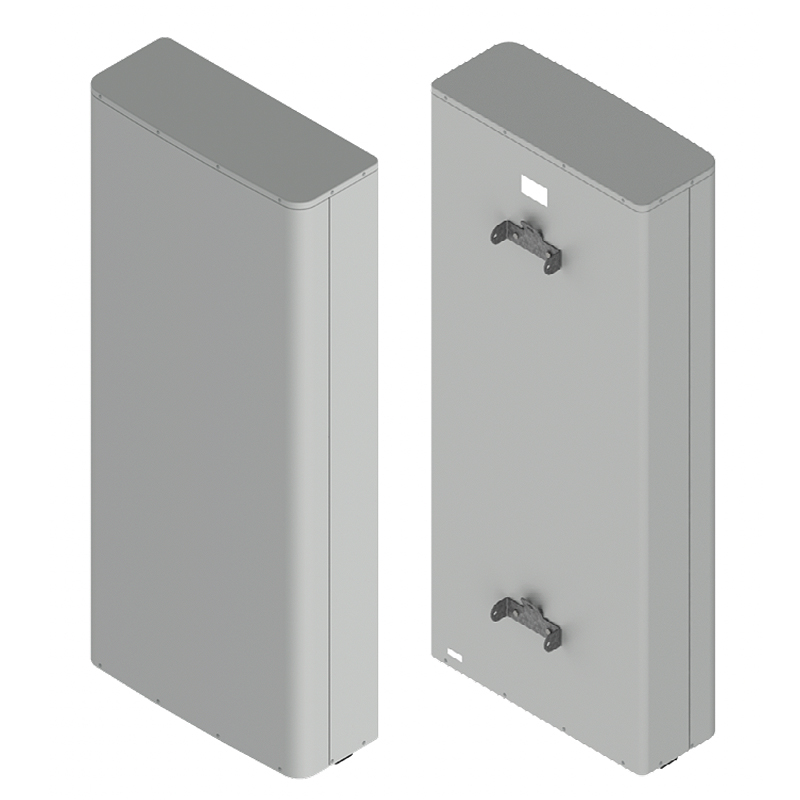

GP7640-08324

Tri-Band 120° Sector Multibeam 4×4 MIMO Antenna with RET [617-896, 1695-2690 & 3300-4000 MHz]

Description:

  • 4×4 MIMO 2/4/4 beam panel antenna for high-capacity applications
  • 2-beam (8-port) covering 617-896 MHz, 4-beam (16-port) covering 1695-2690 MHz and 4-beam (16-port) covering 3300-4000 MHz
  • Remote Electrical Tilt (RET) with independent control for each beam
  • Patented technology allows for stable azimuth beam directions over the entire operating frequency band
Height

75.6"
With Mounting Kit

Yes
Connector

4.3-10
Color

Gray
Total Number of Ports

24
Diversity

2×2, 4×4
Low Band Frequency Range

617-896MHz
Low Band Number of Ports

8 (2-beam 4×4 MIMO)
Mid Band 1 Frequency Range

1695-2690MHz
Mid Band 1 Number of Ports

16 (4x Beam, 4×4 MIMO)
High Band 1 Frequency Range

3300-4000MHz
High Band 1 Number of Ports

16 (4-Beam 4×4 MIMO)
Connector Option 1

4.3/10-F
