GP6320-08238

Product Categories
Product Families
GP6320-08238
Category: Tags: , ,
Total Number of Ports:

20

Dimensions:

63.3” (1607.5 mm) H x 33.8” (859.0 mm) W x 13.3” (337.0 mm) D

Download Datasheet

More Information

Contact customer support.

GP6320-08238

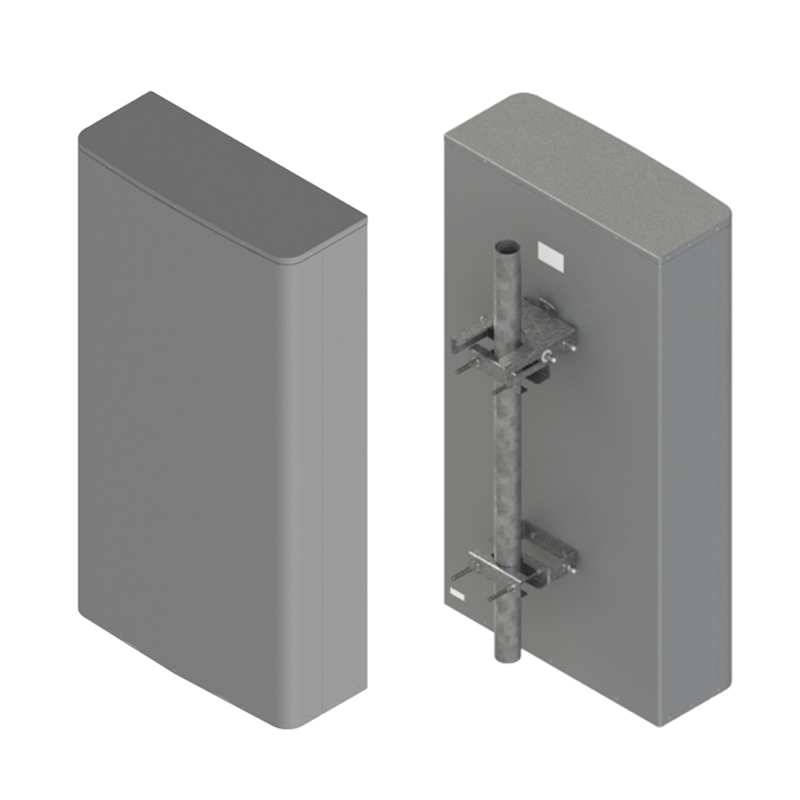

<h4><strong>Dual-Band 2/3 Multibeam 120° Sector 4×4 Antenna with RET [617-960 and 1695-2690 MHz]</strong></h4>
<hr />
<strong>Description:</strong>
<ul>
  <li>2/3 beam antenna for high-capacity venue and macro applications</li>
  <li>2-beam (8-port) 617-960 MHz; each beam with 4×4 MIMO capability</li>
  <li>3-beam (12-port) 1695-2690 MHz; each beam with 4×4 MIMO capability</li>
  <li>Patented technology allows for stable azimuth beam directions over the entire operating frequency band</li>
  <li>Excellent alternative to large lens-based multibeam antennas</li>
</ul>
Height

63"
With Mounting Kit

Yes
Color

Gray
Connector

4.3-10
Diversity

2×2, 4×4
Low Band Frequency Range

617-960MHz
Low Band Number of Ports

8 (2-beam 4×4 MIMO)
Mid Band 1 Frequency Range

1695-2690MHz
Mid Band 1 Number of Ports

12 (3xBeams, 4×4 MIMO)
Connector Option 1

4.3/10-F
