GP3318-07881

Category: Tag:
Total Number of Ports:

18

Dimensions:

33.0” (838.3 mm) x 51.3” (1303 mm) x 8.5” (216 mm)

More Information

GP3318-07881

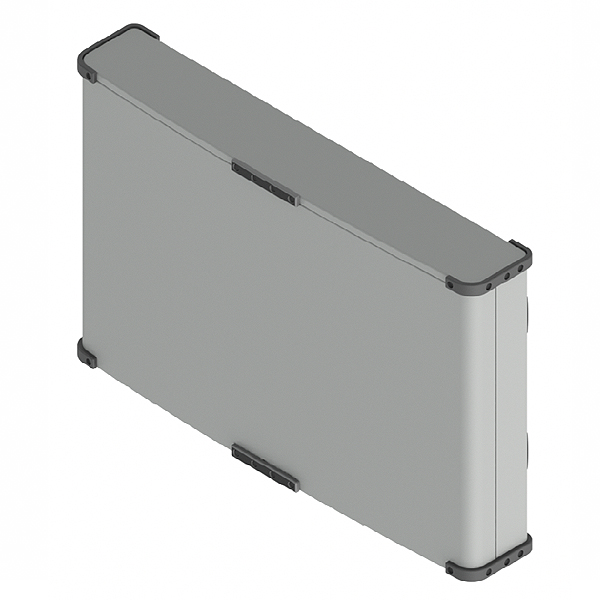

Dual-Band 3/6 Multibeam 2×2 Antenna [698-960 & 1695-2690 MHz]


Description:

  • 2×2 MIMO 3/6 Beam antenna for high-capacity stadium/venue or special events applications
  • 3-beams (6-ports) 698-960 MHz; each beam with 2×2 MIMO capability
  • 6-beams (12-ports) 1695-2690 MHz; each beam with 2×2 MIMO capability
  • 6° Fixed Electrical Downtilt in all bands
  • Patent pending technology allows for stable azimuth beam directions over the entire operating frequency band
  • Excellent alternative to large lens-based multibeam antennas
  • External ruggedized features of the antenna enclosure provide added protection during the installation process
  • Optional heavy-duty transport case to prevent damage for multiple deployment scenarios



Height

33

Color

Gray

Connector

4.3-10

Total Number of Ports

18

Diversity

2×2

Low Band Frequency Range

698-960MHz

Low Band Number of Ports

6

Mid Band 1 Frequency Range

1695-2690MHz

Mid Band 1 Number of Ports

12

Heavy Duty Transport Case

NO, YES
