GP7724-08029
SKU: N/A Category: Tags: ,
Total Number of Ports:

24

Dimensions:

76.5” (1942 mm) H x 59.7” (1517 mm) W x 12.7” (322 mm) D

Download Datasheet

More Information

Contact customer support.

GP7724-08029

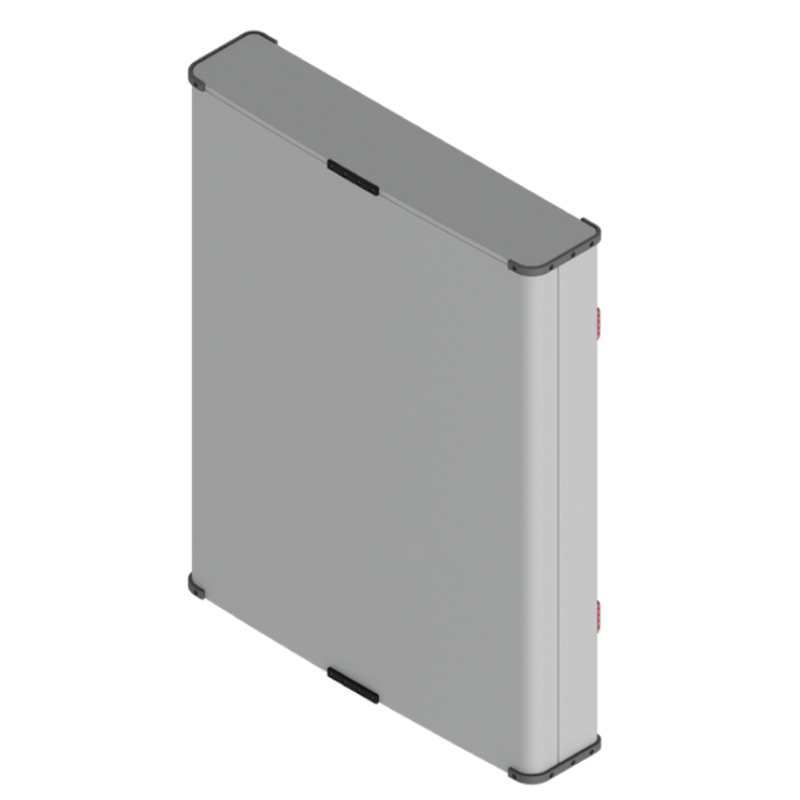

Dual-band 3-Beam 4×4 Multibeam Antenna with RET [617-896 and 1695-2690 MHz]

Description:

  • 4×4 MIMO 3-Beam Antenna for high-capacity stadium/venue or special event applications
  • 3-Beam (12-port) 617-896 MHz and 3-Beam (12-port) 1695-2690 MHz
  • Remote Electrical Tilt (RET) with independent control for each beam
  • Patented technology allows for stable azimuth beam directions over the entire operating frequency band
  • Excellent alternative to large lens-based multibeam antennas
  • Optional heavy-duty transport case to prevent damage for multiple deployment scenarios
Height

76.5"
Color

Gray
Connector

4.3-10
Total Number of Ports

24
Diversity

2×2, 4×4
Low Band Frequency Range

617-896MHz
Low Band Number of Ports

12 (3x Beams, 4×4 MIMO)
Mid Band 1 Frequency Range

1695-2690MHz
Mid Band 1 Number of Ports

12 (3xBeams, 4×4 MIMO)
Connector Option 1

4.3/10-F
Heavy Duty Transport Case

NO, YES
With Mounting Kit

Yes
Request a Quote
