GP5920-08182

Product Categories
Product Families
GP5920-08182
Category: Tags: ,
Total Number of Ports:

20

Dimensions:

59.4” (1510 mm) H x 37.1” (943 mm) W x 12.4” (316 mm) D

Download Datasheet

More Information

Contact customer support.

GP5920-08182

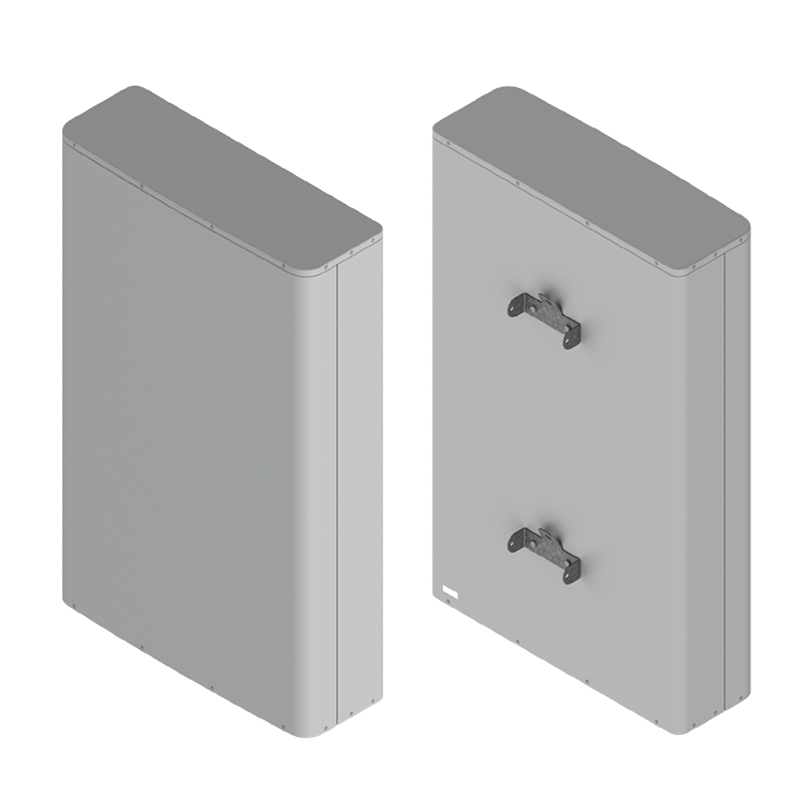

Tri-Band 2/4/4 Multibeam 120° Sector Antenna with RET [617-960, 1695-2200, 3300-3550/3700-4000 MHz]

Description:

  • 2×2 MIMO 2/4/4 beam panel antenna for high-capacity and dense macro applications
  • 2-beam (4-port) covering 617-960 MHz, 4-beam (8-port) covering 1695-2200 MHz and 4-beam (8-port) covering 3300-3550/3700-4000 MHz
  • Remote Electrical Tilt (RET) with independent control for each beam
  • Patented technology allows for stable azimuth beam directions over the entire operating frequency band
Height

59"
With Mounting Kit

Yes
Color

Gray
Connector

4.3-10
Total Number of Ports

20
Diversity

2×2
Low Band Frequency Range

617-960MHz
Low Band Number of Ports

2 (2-beam 2×2 MIMO)
High Band 1 Frequency Range

3300-3550/3700-4000 MHz
High Band 1 Number of Ports

8 (4-Beam 2×2 MIMO)
Mid Band 1 Frequency Range

1695-2200MHz
Mid Band 1 Number of Ports

8 (4-beam 2×2 MIMO)
Connector Option 1

4.3/10-F
