GP4812-B8038

Product Categories
Product Families
GP4812-B8038
Category: Tags: ,
Total Number of Ports:

12

Dimensions:

48.1” (1221.0 mm) H x 88.7” (2253.0 mm) W x 28.5” (724.4 mm) D

Download Datasheet

More Information

Contact customer support.

GP4812-B8038

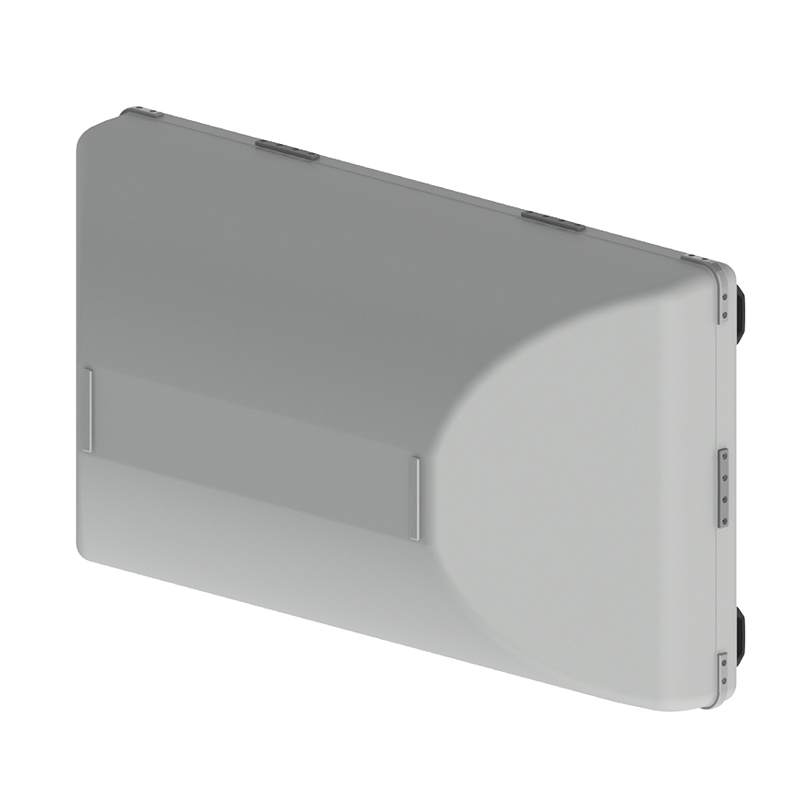

6-beams 120° Sector Low Band 2×2 Antenna [617-960 MHz]

Description:

  • 2×2 MIMO 6-beams 120° sector antenna for high-capacity stadium/venue or special events applications
  • 6-beams (12 ports) 617-960 MHz; each beam with 2×2 MIMO capability
  • 6° Fixed Electrical Downtilt
  • Patent pending technology allows for stable azimuth beam directions over the entire operating frequency band
  • External ruggedized features of the antenna enclosure provide added protection during the installation process
Height

48"
With Mounting Kit

Yes
Color

Gray
Connector

4.3-10
Total Number of Ports

12
Diversity

2×2
Low Band Frequency Range

617-960MHz
Low Band Number of Ports

12 (6-beam 2×2 MIMO)
Connector Option 1

4.3/10-F
Request a Quote
