GC2448-07775

Product Categories
Product Families
GC2448-07775
Categories: , Tag:
Total Number of Ports:

48

Dimensions:

24” (610mm) H x 16” (406.4 mm) D

Download Datasheet

More Information

Contact customer support.

GC2448-07775

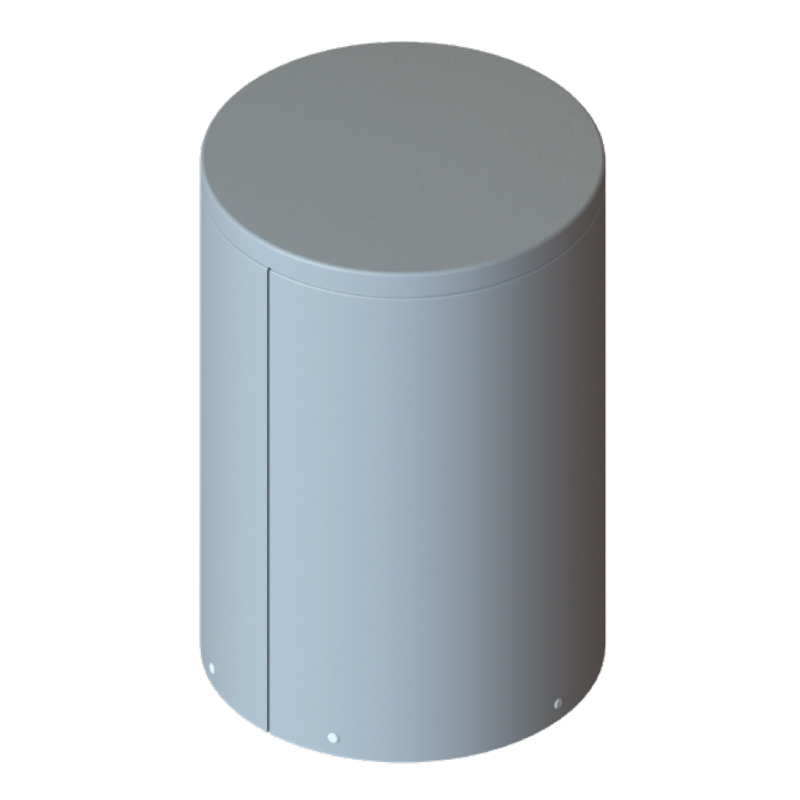

2’ 48-Port Directional Tri-Sector Canister Antenna [1695-2690, 3300-4200 MHz]

Description:

  • Tri-sector 48-Port Antenna for High Capacity Area Coverage
  • 65o beamwidth Dual-Polarized Design Covering AWS, PCS, WCS and BRS bands
  • 24x ports (8 ports per sector) covering 1695-2690 MHz
  • 3x 8T8R M-MIMO Array (one per sector) for C-band 3300-4200 MHz
  • 3 Calibration Ports (one per sector) for C-band M-MIMO Array
Height

24"
With Mounting Kit

Yes
Connector

NEX10 Connector
Total Number of Ports

48
Diversity

2×2, 4×4, 8×8
Mid Band 1 Frequency Range

1695-2690MHz
Mid Band 1 Number of Ports

24
High Band 1 Frequency Range

3300-4200MHz
High Band 1 Number of Ports

24
Connector Option 1

NEX10 (F)
