GP2712-06367

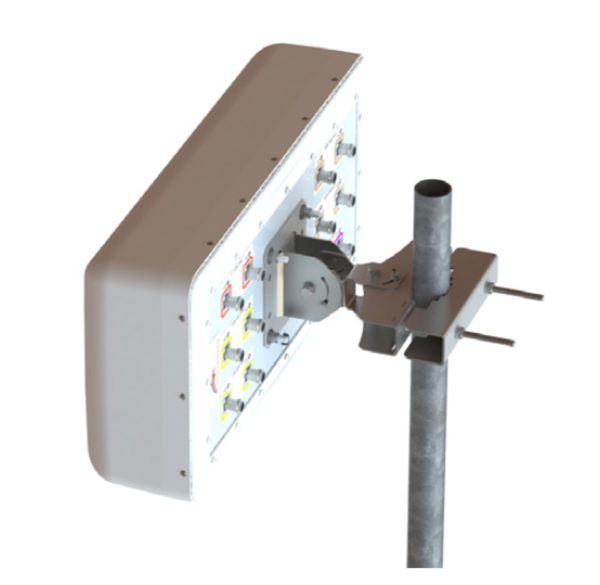

GP2712-06367-2
Category: Tag:
Total Number of Ports:

12

Dimensions:

13.9" (352mm) H x 26.9” (684mm) W x 5.5" (139mm) D

More Information

Pattern or iBwave vex files can be provided upon request. Contact customer support.

GP2712-06367

30°/60° 12-Port Directional Panel Antenna [617-896, 1695-2690, 3400-3800 and 5150-5925 MHz]

  • Single-sector 12-Port MIMO antenna for high capacity and stadium venues.
  • 30°/60° beam width dual-polarized covering 600 MHz/LTE/CELL, AWS/PCS/WCS/BRS, CBRS and LAA / U-NII Bands.
  • 2x ports for 617-896 MHz
  • 4x ports for 1695-2690 MHz
  • 4x ports for 3400-3800 MHz
  • 2x ports for 5150-5925 MHz*

*Compliant to 789033 D02 General U-NII Test Procedures New Rules v01r04: The antenna meets current U-NII-1 requirements for gain and upper side-lobe performance. Guidelines for Compliance Testing of Unlicensed National Information Infrastructure (U-NII) Devices – Part 15, Sub-part E

Total Number of Ports

12

Height

14"

Low Band Frequency Range

617-896MHz

Low Band Number of Ports

2

Mid Band 1 Frequency Range

1695-2690MHz

Mid Band 1 Number of Ports

4

High Band 1 Frequency Range

3400-3800MHz

High Band 1 Number of Ports

4

High Band 2 Frequency Range

5150-5925MHz

High Band 2 Number of Ports

2

Connector Option 1

4.3/10-F

RELATED PRODUCTS

  • 62-45-09

    Stadium

    1 or 2 Axis Mounting Bracket for Galtronics Directional Panel Antennas (D5501, D5503, D5778, D5944, D5977, 6367, D6481, 6670, 6836, 6847, 6849, 7057, 7061)
