GC2410-06977
SKU: N/A Categories: , Tag:
Total Number of Ports:

10

Dimensions:

24.9” (634mm) H x 10.0” (255mm) D

More Information

Pattern or iBwave vex files can be provided upon request. Contact customer support.

GC2410-06977

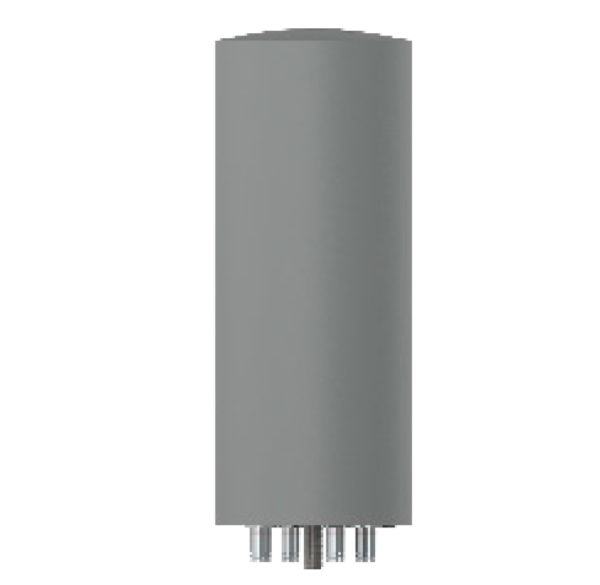

2’ Peanut Shape (Pseudo Omni) 10-Port Canister Antenna [1695-2690, 3400-3800 and 5150-5925 MHz]

  • Pseudo Omni Canister Antenna for Outdoor DAS and Small Cells.
  • 4x ports for AWS/PCS/WCS/BRS Band 1695-2690 MHz
  • 4x ports for CBRS Band 3400-3800 MHz
  • 2x ports for U-NII Band 5150-5925 MHz*
  • Peanut shape pattern for street/highway coverage



*Compliant to 789033 D02 General U-NII Test Procedures New Rules v01r04: The antenna meets current U-NII-1 requirements for gain and upper side-lobe performance. Guidelines for Compliance Testing of Unlicensed National Information



Weight N/A
Dimensions N/A
Total Number of Ports

10

Height

24"

Diversity

2×2, 4×4

Mid Band 1 Frequency Range

1695-2690MHz

Mid Band 1 Number of Ports

4

High Band 1 Frequency Range

3400-3800MHz

High Band 1 Number of Ports

4

High Band 2 Frequency Range

5150-5925MHz

High Band 2 Number of Ports

2

Connector Option 1

4.3/10-F

Color

3M Chrome, Black, Brown, Gray

Clear
